  YKK series

1.Brief Description

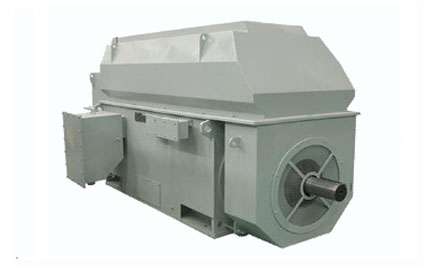

YKK-series high voltage three phase asynchronous motor is enclosed squirrel-cage motor with an air-air cooler. The protection degree is IP44 or IP54/IP55 and the cooling method is of IC611. The motor has such advantage as high efficiency, energy-saving low noise, low vibration, light weight and reliable performance. They are easy for installation and maintenance. This motor is used to drive various mechanical equipment such as blowers. compressors, pumps, crushers, etc. It can serve as the prime driver in coal mines, mechanical industry, power plants and various industrial enterprises.
The structure and the mounting type of the motor is of IMB3 with continuous duty(SI). The rated frequency is 50HZ and rated voltage is 6000V,10000V other voltage requirement or special requirements should be negotiate with seller before order is placed.
From shaft extension end the motor of 2P running clockwise, counter clockwise running required by users should be specified clearly in the order.

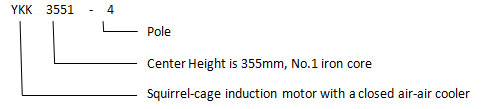

2.The meaning of Type:

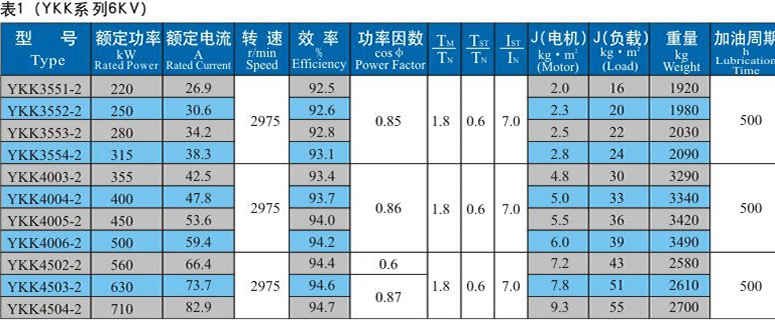

3.Tchnical Data see Appendix 1.
4.Mounting and Contour Dimensions see Appendix 2.
5.When ordering, the following requirement should be specified:
Frame size(such as:YKK3551-4) Mounting Type(IMB3)
Rated Power(185W) Protection Degree(IP54)
Rated Voltage(6000v) Cooling Method(IC611)
Rated Frequency(50HZ) Insulation Class( Class F)
Synchronous Speed(1500r/min) Ambient Conditions(altitude should not be over 1000m above
sea level, ambient temperature varying with seasons should
not exceed 40 degree)
